Jeep Wrangler Airbag Light: What It Means on the JK and JL, Causes and Recalls

The airbag light on a Jeep Wrangler is the red symbol of a seated person with a round airbag in front of them. It should come on for about 4 to 8 seconds every time you turn the key to ON, as a self-check, and then go out. If it stays on, comes on while you drive, flickers, or never lights at startup, the Occupant Restraint Controller (ORC) has found a fault, and Jeep’s owner’s manuals say one or more airbags may not be ready to protect you. Both the 2017 JK manual and the 2021 JL manual tell owners to have the system serviced by a dealer immediately.

The fault is usually not the airbag itself. On the JK (2007 to 2018) the common causes are a failed clockspring in the steering column, a disturbed connector under a front seat, a seat belt buckle switch, or low battery voltage. The JL (2018 on) and the Gladiator add an occupant classification sensor in the passenger seat that is sensitive to seat covers and objects. Several recalls also apply, and one covered close to 400,000 early JKs.

What the airbag light is telling you

The ORC is the airbag computer. It watches the internal circuits and wiring of every restraint part whenever the ignition is in ON/RUN or START. On a JK the manual lists the ORC, the steering wheel and column, the instrument panel, knee bolsters, front airbags, side airbags on equipped models, front and side impact sensors, seat belt pretensioners, seat track position sensors and the seat belt buckle switch. The JL list is similar and adds the Occupant Classification System (OCS) in the passenger seat.

When the ORC sees a problem it lights the warning lamp, either briefly or continuously, and stores a fault code that records what it found. If the light comes back on after the initial startup, a single chime sounds. The JL also has a redundant airbag warning light: if the main lamp itself fails, a second indicator comes on and stays on until the fault is cleared.

The 2017 JK manual adds a detail many owners miss. If the speedometer, tachometer or engine gauges stop working, the ORC may also be disabled, even if the airbag light is not lit. Treat a dead cluster as an airbag problem too.

For the other red and amber symbols, the Jeep Wrangler dashboard lights guide covers every warning by color.

Why it means the airbags may not deploy

The ORC does not switch off one airbag and leave the rest alone in every case. Depending on the fault, it can disable one circuit, a group of circuits, or the whole system. A broken clockspring circuit, for example, means the driver’s frontal airbag cannot be fired. NHTSA’s recall summaries for the Wrangler state the consequence plainly: a failed airbag circuit may prevent the driver’s frontal airbag from deploying in a crash, increasing the risk of injury. A fault in the front impact sensor wiring, as in a 2016 to 2017 recall described below, can stop both frontal airbags and the seat belt pretensioners.

The Jeep keeps driving normally, which is why so many owners live with the light for months. Nothing about the drive tells you whether the fault would matter in a crash. That is the reason Jeep’s wording is “immediately” and not “at your next service.”

Common causes on the JK and JL

Clockspring

The clockspring is a coiled ribbon cable that keeps the driver’s airbag, horn and steering wheel switches connected while the wheel turns. On the JK it became a known weak point because dust gets into the housing, which is exactly what the recall below addresses. Owners commonly report the airbag light together with a horn that stops working or steering wheel buttons that cut in and out. That combination points strongly at the clockspring. It is replaced from the front of the column after the driver’s airbag module is removed, which is airbag work and belongs at a shop.

Seat wiring, buckle switches and the passenger seat sensor

Each front seat has wiring for the buckle switch and, on equipped models, the seat-mounted side airbag. The JL passenger seat also has the OCS, which reads the seated weight to decide whether the passenger front airbag should be active. Wranglers live a harder life than most cars: seats come out for cleaning, floors get wet with the doors and top off, and aftermarket audio often gets routed under the seats. If you have fitted a box from our Jeep Wrangler subwoofer box guide, check that no wiring is pinching or pulling on the seat harness.

The JL manual is specific about the passenger seat. Do not fit an aftermarket seat cover or cushion, do not add a secondary cover or mat, and do not use covers from other model years. The OCS can misread the occupant, and the manual warns this can change how the airbag deploys. The buckle switch also feeds the seat belt reminder, so if you have been experimenting with ways to turn off the seat belt alarm, a plugged-in clip or a modified buckle can trigger an airbag fault as well.

Low voltage

A weak battery or a bad ground can make several modules report faults at once, and the ORC is one of them. If the airbag light came on along with ESC, check engine or other warnings after a slow start, test the battery and charging system first. Our Jeep Wrangler won’t start guide walks through battery and charging checks, including the JL auxiliary battery. A low-voltage code sometimes clears after normal key cycles with a healthy battery; if the light stays on, the code has to be read and cleared.

Airbag recalls on the Wrangler: check your VIN

Before paying for any diagnosis, enter your 17-character VIN at nhtsa.gov/recalls. Recall work is free at any Jeep dealer, and some of these campaigns are old enough that used Wranglers still have them open. The figures below come from NHTSA’s recall records.

Two points about this list. The 16V-352 and 18V-021 campaigns describe inflator propellant that degrades after years of humidity and temperature cycling, the Takata failure mode, and NHTSA’s Takata recall spotlight lists Jeep among the affected brands. Inflator recalls like these usually do not turn on the airbag light. A Wrangler with a dark warning lamp can still have an open do-not-drive recall, so the VIN check matters even if your dash looks fine. Second, the main JK clockspring recall stopped at the 2010 model year for left-hand-drive Jeeps. A 2011 to 2018 JK with a failed clockspring is normally a paid repair. Owners commonly report dealer quotes of roughly $400 to $750 for a clockspring as of 2026, depending on the part used and local labor rates.

If your Wrangler shows a recall that a dealer says was done, ask for the repair order. You can also call FCA customer service at 1-800-853-1403 or NHTSA’s hotline at 1-888-327-4236.

What owners can and cannot do

Jeep’s position is blunt. The JL manual says it is dangerous to try to repair any part of the airbag system yourself, that only FCA-approved parts should be used for any restraint component or fastener, and that seat service, including removing or even loosening the seat bolts, should be done by a dealer. Here is where the line sits in practice.

Reasonable for an owner:

• Check the VIN for open recalls.
• Note exactly when the light comes on: at startup, over bumps, when turning, after rain or a wash.
• Check whether the horn and steering wheel buttons still work.
• Test the battery and look for a loose terminal or corroded ground.
• Remove aftermarket seat covers, cushions and anything heavy from the JL passenger seat, then see if the light clears after a few key cycles.
• Look under the seats for anything snagged, crushed or soaked, without touching or unplugging connectors.

Leave to a dealer or qualified shop:

• Reading and clearing airbag codes. A basic OBD reader used for the check engine light usually cannot see the ORC at all.
• Unplugging, cleaning or repinning any airbag or seat connector. These are usually yellow and must never be probed with a test light or multimeter.
• Removing the driver’s airbag module or the clockspring.
• Removing seats, steering wheels, impact sensors or the ORC.

Disconnecting the battery does not make the system safe to work on. Both the JK and JL manuals note that the ORC has a backup power supply that may deploy the airbags even if the battery loses power or is disconnected. Professional procedures include a waiting period after disconnecting power for exactly this reason. A probe on the wrong pin can fire an airbag into your face or chest.

Modifications that can trigger it

Wranglers get modified more than almost any vehicle, and some common changes reach into the restraint system. The JL manual warns against modifying the front fascia or bumper, the body structure, or adding aftermarket side steps or running boards, because these can change how crash sensors read an impact. It also says not to add badges or stickers to the steering wheel hub or the passenger side of the dash, where the airbags open.

Steering wheel swaps, light bars wired into existing harnesses, and seat swaps from other model years are the usual culprits in owner reports. If the light came on soon after a modification, start there and tell the shop what was changed. Many airbag faults on modified Jeeps turn out to be a connector that was disturbed during the install.

What a repair visit looks like

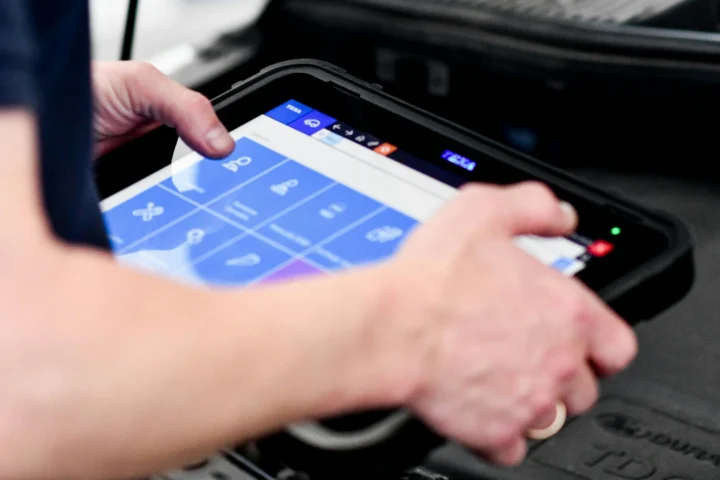

A shop will connect a scan tool that talks to the ORC, read the stored code and its history, and then test the specific circuit it names: driver airbag squib, a side airbag, a buckle switch, the OCS, or supply voltage. The code points to a circuit, not always to a failed part, so expect some time spent checking wiring and connectors. Diagnosis is normally billed as shop labor, and the repair itself ranges from reseating a connector to a clockspring, buckle or seat sensor replacement. On the JL, an OCS fault can mean recalibration or replacing parts of the passenger seat, which only a dealer can do.

If the Jeep has been in a crash where the airbags deployed, the ORC, the deployed modules and other parts have to be replaced, and the JL’s crash response system may need a dealer reset as well. That work is never a DIY job.

When you call for an appointment, mention whether the horn and steering wheel buttons work, whether the light is constant or intermittent, and any recent battery, seat or wiring work. With those three facts most shops can tell you whether it is likely a clockspring, a seat circuit or a voltage problem before the Jeep arrives.
